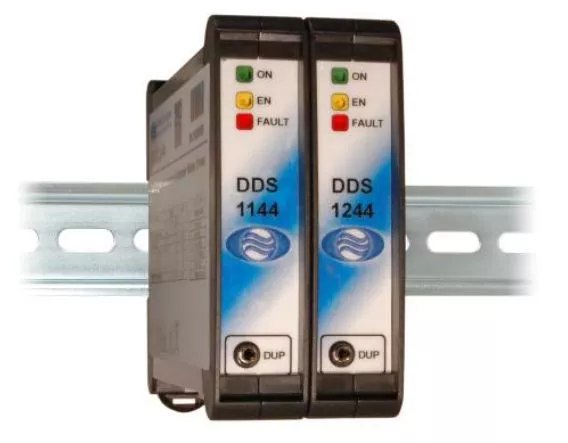

LAM DDS1144: Digital 1-chanel 6.4A microstep motor driver with encoder input

LAM DDS1144: Digital 1-chanel 6.4A microstep motor driver with encoder input
For a larger view click on the thumbnail
139,00 EUR
19 % VAT incl. excl. Shipping costs
Add to cart

Shipping time: On Stock
Product no.: 1512
Manufacturer: LAM Technologies
More products of: LAM Technologies



  • Details
  • Downloads
  • Customer-tip

Products description

Features:
• 1 stepper motor channel
• Connect up to 4 boards to PC printer port by using the universal interface board
• compatible to common CNC software (Win-PCNC, Mach3, Step4, CNC-profi, EMC etc.)
• Easy adjustable motor current 1.0-4.5A (RMS) respectively 1.4-6.4A (peak) each phase
• 20-50 Volt DC motor power supply
• Only one supply voltage required, optional I/O supply voltage to keep variables on emergency stop
• Position or speed control
• 5 inputs, 2 outputs, 1 analoge input (+/-10V)
• I/Os compatible to voltages from 3VDC to 28VDC
• Inputs and outputs are galvanicaly isolated with optocouplers
• Stepwidth down to 1/128 microstep, adjustable mapping between clock input and stepwidth (STEPLESS technology)
• Automatic current reduction (configurable)
• Up to 4 programmable drive speeds selectable via I/O for applications requiring fixed speed drive, or setvalue on analog input.
• Configuration with PC via USB (with adaptor UDP30, galvanically isolated)
• Short circuit protected
• Removable terminal block connectors
• For DIN-Rail mounting
• Size: 122*35*100m

Other models and power ratings are available on request.
