Binder female socket 6 pin, series 680

Binder art. no. 09 0324 00 06

M16 connectors IP 40
serie 581/ 680/ 682
Contacts 6 DIN, female socket, solder, silver plated contacts

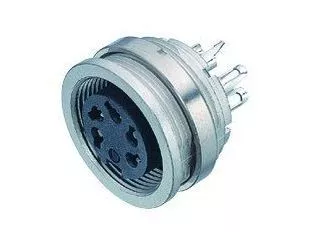

Thanks to the high current capacity and the scew-locking this is an ideal connector for stepper motors. Matching male connector (99 2021 02 06) available on request. Please note: The picture show the 5 pin version.

ordering number 09 0324 00 06
Connector locking system Screw-locking
Termination solder
Wire gauge (mm) 0,75 mm²
Wire gauge (AWG) 20
Max. Cable outlet -
Degree of protection IP 40
Mechanical operation >500 mating cycles
Upper temperature +85 °C
Lower temperature -40 °C
Rated voltage 250 V
Rated impulse voltage 1500 V
Pollution degree 1
Overvoltage category I
Material group III
Rated current (40°C) 5 A
Volume resistivity ≤ 5 mΩ
Material of contact CuSn (bronce)
Contact plating Ag (silver)
Material of contact body PBT (UL 94 V-0)
Material of housing zinc diecasting, nickel plated
