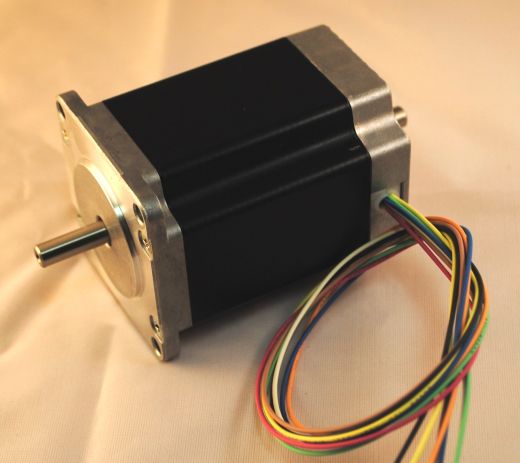

• mechapro OEM motor, based on PK268-E2.0B
• 2 phase high performance stepping motor
• 1.75 Nm holding torque (unipolar 1.35 Nm)
• 1.8° stepping angle (200 fullsteps)
• 8 wire leads, can be driven uni- and bipolar (coils in series or parallel)
• 2nd shaft ending (e.g. for encoder)
• Size: 56x56x76mm, shaft diameter: 6,35mm (1/4")
• Electrical data: bipolar: 4.2/2.1A, unipolar: 3 A, 3.0 V, 1.0 Ohm, 1.6 mH (each phase)
• Ideal for microstepping
|
